mcDSA-E25XC-SSI

Articlenumber: 1515709

Certifications:


mcDSA-E25XC-SSI
Motor controller up to 160 A
Compact four-quadrant controller for BLDC motors, Linear motors
CAN Interface (protocol DS301, Device profile DS402)
integrated digital inputs
integrated digital outputs
integrated analog inputs
Overvoltage, undervoltage and overtemperature monitoring
Device status notification with the help of 3 LEDs (Power, Status, Error)
Hex switches to set the device node id
Easily programmable due to built-in MPU (Motion Process Unit)
NameValue
Supply voltages
     Electronic current consumption@ Ue=24V290 mA
     Electronic supply voltage Ue19 .. 30 V
     Power supply voltage Up39 .. 60 V

Output current
     Continuous output current (not certified)5 @Up=24V
with Heatsink (Art.No. 1511832)		65 A
70 A
     Continuous output current (not certified)5 @Up=48V
with Heatsink (Art.No. 1511832)		55 A
65 A
     Continuous output current (certified UL/CE)4
@Up=24V
@Up=60V
54 A
49 A
     Max. output current160 A

PWM
     Output voltage100% Up
     PWM frequency25, 326, 50 kHz
     PWM modesymmetrical / asymmetrical

Motor types
     BLDC motorsyes
     DC motorsno
     Linear motorsyes
     Stepper motorsno

Mechanical
     AssemblyWall
     ConnectorsTension clamp connection
     Size LxWxH mm
     Weight g

CAN bus
     Galvanically isolatedyes
     CAN specification2.0B
     Max. baudrate1 Mbit/s
     Device profileDS402
     ProtocolDS301

RS485
     SignalsDATA,/DATA,CLK,/CLK
     Type2-Wire EIA-485

Functional safety
     Performance Level (PL)up to PL e
     Safety Integrity Level (SIL)up to SIL 3
     Safety function
refer safety manual		Safe Torque Off (STO)

Sensor supply (Encoder/Hall/SSI)
     Max. output current0.2 A
     Output voltage5 V

Incremental encoder
     Input voltage (24V tolerant)0 .. 5 V
     Max. freqency (per channel)500 kHz
     SignalsA,/A,B,/B,Inx,/Inx
     Signal typedifferential, open collector, single ended
     Typeincremental

Hall sensors
     Input voltage (24V tolerant)0 .. 5 V
     Max. freqency (per channel)10 kHz
     SignalsH1,/H1,H2,/H2,H3,/H3
     Signal typedifferential, open collector, single ended

STO channels (ST0-A..B)
     High voltage8 .. 30 V
     Low voltage0 .. 5 V

Digital inputs
     High voltage8 .. 30 V
     Low voltage0 .. 5 V
     NoticeDin5 parallel with Dout27
     Number - digital inputs6 (Din0..5)

Digital outputs
     Continuous output current (not certified)1.5 A
     Continuous output current (certified UL/CE)1 A
     Load Dout0..1resistive, low inductive
     Load Dout2resistive, inductive
     NoticeDout2 parallel with Din5
     Number3 (Dout0..2)
     Output voltageElectronic supply voltage Ue
     Signal typepositive switching

Analog inputs
     Number2 (Ain0..1)
     Signal type - Ain0+/- 10 V, 12 Bit, differential
     Signal type - Ain1+/- 10 V, 12 Bit, single ended
1No reverse polarity protection, the destruction limit is at overvoltage of >= 33V or short-term peak voltage of 37V < 1s
2power amplifier switched off, 5V output (sensor supply) is free, STO active
3No reverse polarity protection, the destruction limit is at overvoltage of >= 80V
4connector cable with max. possible cable cross-section, PWM frequency 32 kHz (asymmetrical), ambient temperature 40 °C, I/O's and 5V output active, RMS current: 54 A → 44 Aeff, 49 A → 40 Aeff
5connector cable with max. possible cable cross-section, PWM frequency 32 kHz (asymmetrical), ambient temperature 40 °C, I/O's and 5V output free, RMS current: 55 A → 45 Aeff, 65 A → 53 Aeff, 70 A → 57 Aeff
no guarantee, since value is determined empirical, please consider the application notes to determine the continuous current
6default value
7Input voltage must not exceed Electronic supply voltage Ue
Datasheet
mcManual 🔒
2D/3D-Drawing 🔒
mcPLC 🔒

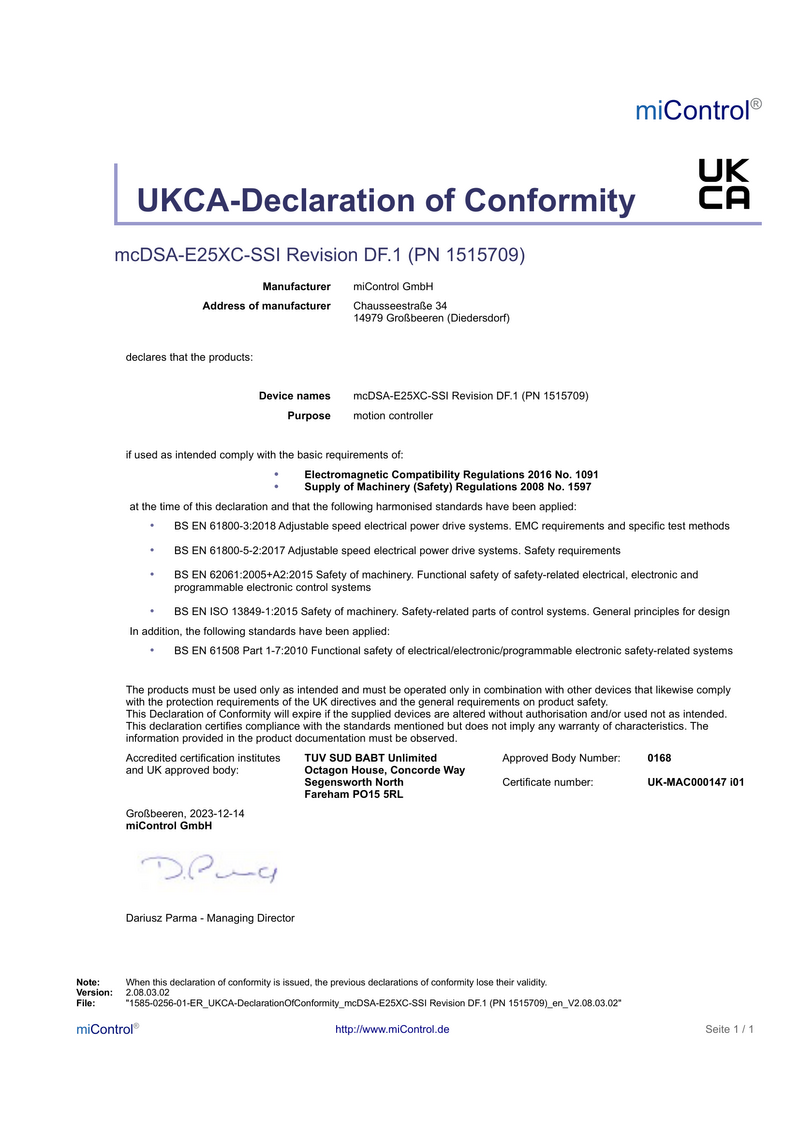

UKCA-declaration of conformity
