mcDSA-F37-Modul

Articlenumber: 1514226

Certifications:


mcDSA-F37-Modul
Motor controller up to 120 A
Compact four-quadrant controller for BLDC motors, Linear motors
CAN Interface (protocol DS301, Device profile DS402)
integrated digital inputs
integrated digital outputs
integrated analog inputs
Overvoltage, undervoltage and overtemperature monitoring
Easily programmable due to built-in MPU (Motion Process Unit)
NameValue
Supply voltages
     Electronic current consumption@ Ue=24V265 mA
     Electronic supply voltage Ue118 .. 30 V
     Power supply voltage Up39 .. 60 V

Output current
     Continuous output current (not certified)5
@Up ≤ 24V
@Up ≤ 48V
21 A
15 A
     Continuous output current (certified UL/CE)4
@Up ≤ 24V
@Up ≤ 60V
19.5 A
13.4 A
     Max. output current120 A

PWM
     Commutation typeField Oriented Control
     PWM frequency32 kHz
     PWM modeSVPWM

Motor types
     BLDC motorsyes
     DC motorsno
     Linear motorsyes
     Stepper motorsno

Mechanical
     AssemblyBackplane
     ConnectorsPin header, Crimp technology
     Size LxWxH70 x 50 x 13 mm
     Weight50 g

CAN bus
     Galvanically isolatedno
     CAN specification2.0B
     Max. baudrate1 Mbit/s
     Device profileDS402
     ProtocolDS301

RS485
     SignalsDATA,/DATA,CLK,/CLK
     Type2-Wire EIA-485

Functional safety
     Performance Level (PL)up to PL e
     Safety Integrity Level (SIL)up to SIL 3
     Safety function
refer safety manual		Safe Torque Off (STO)

Hall sensors
     Input voltage0 .. 5 V
     Max. freqency (per channel)10 kHz
     SignalsH1,H2,H3
     Signal typeopen collector, single ended

Encoder
     Input voltage1 V
     Resolution13 bit per sine period
     Signals+SIN,-SIN,+COS,-COS
     Signal typeSIN/COS, analog, differential
     TypeSIN/COS

Sensor supply (Hall)
     Max. output current0.05 A
     Output voltage VDD5 V

Sensor supply (Hiperface)
     Max. output current0.25 A
     Output voltage10 V

Sensor supply (Encoder/SSI)
     Max. output current0.2 A
     Output voltage VDD5 V

STO channels (ST0-A..B)
     High voltage8 .. 30 V
     Low voltage0 .. 5 V

Digital inputs
     High voltage8 .. 30 V
     Low voltage0 .. 5 V
     Number - digital inputs6 (DIN0..5)

Digital outputs
     Continuous output current (not certified)1.5 A
     Continuous output current (certified UL/CE)1 A
     Load Dout0..1resistive, low inductive
     Load Dout2resistive, inductive
     Number3 (Dout0..2)
     Output voltageElectronic supply voltage Ue
     Signal typepositive switching

Analog inputs
     Number1 (AIN0)
     Signal type - AIN+/- 10 V, 12 Bit, differential
1No reverse polarity protection, the destruction limit is at overvoltage of >= 33V or short-term peak voltage of 37V < 1s
2power amplifier switched off, 5V output (sensor supply) is free, STO active
3No reverse polarity protection, the destruction limit is at overvoltage of >= 70V
4connector cable with max. possible cable cross-section, PWM frequency 32 kHz (SVPWM), ambient temperature 50 °C, I/O's and 5V output active, RMS current: 19.5 A → 14 Aeff, 13.4 A → 9.5 Aeff
5connector cable with max. possible cable cross-section, PWM frequency 32 kHz (SVPWM), ambient temperature 40 °C, I/O's and 5V output free, RMS current: 21 A → 14.8 Aeff, 15 A → 10.6 Aeff
no guarantee, since value is determined empirical, please consider the application notes to determine the continuous current
6or equivalent protection class (see Safety Manual (CE))
Datasheet
mcManual 🔒
2D/3D-Drawing 🔒
mcPLC 🔒

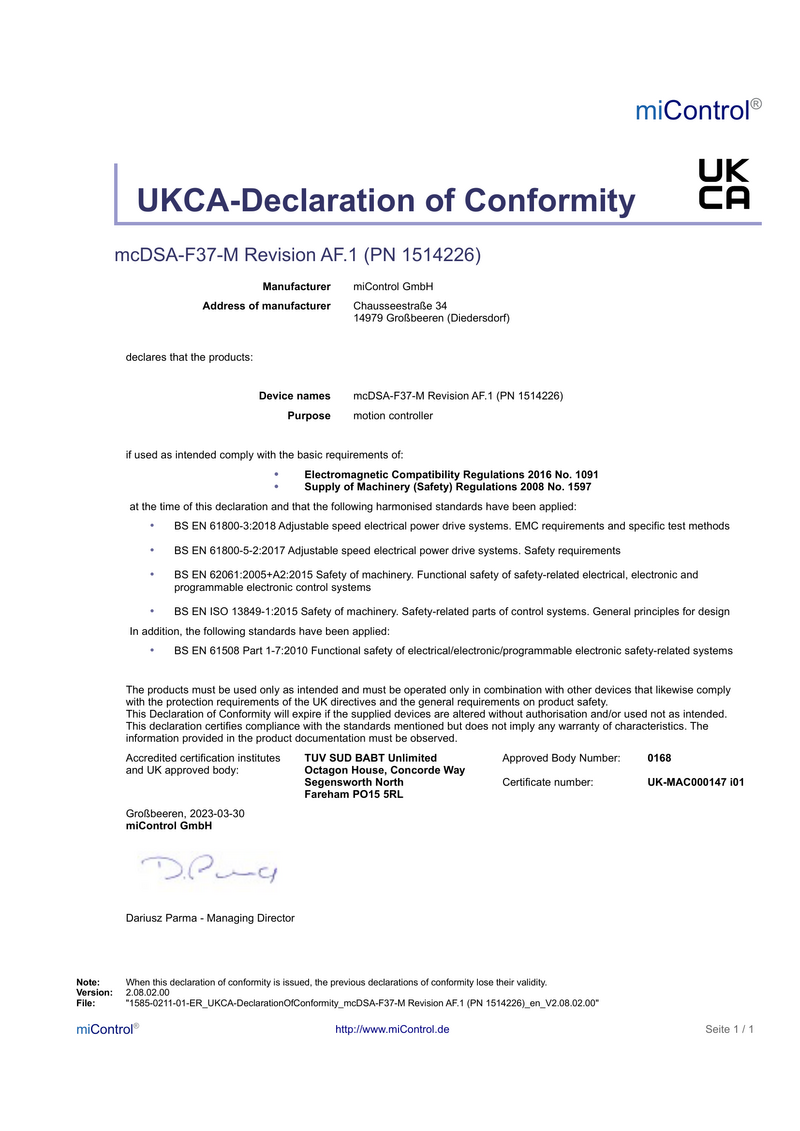

UKCA-declaration of conformity
